Geze TS 500 V No Hold Open Floorspring
Geze TS 500 V No Hold Open Floorspring

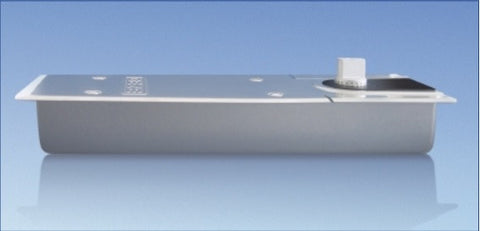

The TS 500 V is a floor spring for use with doors with a maximum available leaf width of 1100 mm. The very low overall height of just 42 mm is a welcome benefit for both new building and renovation projects.
Product features GEZE TS 500 V No Hold Open
- Overall height 42 mm
- Closing force adjustable size 1-4 according to EN 1154
- Back check
- Closing speed and latching action adjustable
- Safety valve preventing deliberate overloading
- Closing range from approx. 170 degrees
- Large adjustment range: height 6 mm, lateral 10 mm, length 10 mm
- Galvanised cement box.
