Codelocks CL0470 Narrow Stile Codelock with Euro Cylinder

Brand: Codelocks

All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

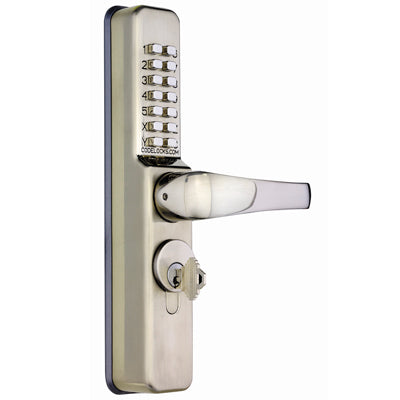

Codelocks Narrow Stile Codelock with Euro Cylinder


  • Internal doors and External Aluminium doors
  • Mechanical narrow stile Codelock
  • Medium duty lock
  • Lever handle (standard) lock for doors hung on the left or right
  • Ball shape knob and short lever handle available on request
  • Complete with cams and euro profile cylinder
  • Available in Stainless Steel
  • Use in offices / schools / warehouses / hospitals / care homes / nurseries / hotels / leisure facilities / the home
  • Designed as a retrofit for Adams Rite 4510 lockcase or similar style ANSI round cylinder Mortice deadlatches

Available finish in: Stainless Steel

The CL0470 locks are supplied with a random code commencing with the ‘C’ clear button. To change the code after fitting, the lock must first be removed from the door. The code is non sequential, that is the code can be entered in any order e.g. 1234 can be 4321 or 1342 or whatever is the most convenient sequence. With the 13 buttons a total of 8,191 different codes are available, which may be entered in any order.




Item Details
Body material Zinc alloy
Door material Suitable for aluminium doors
Door thickness 45mm - 55mm (1 3/4" 2 3/16")
Finishes PVD (Physical Vapour Deposition) hardwearing low maintenance finish SS (stainless steel)
Latches 25mm (1") and 29mm (1 1/8") Backset Latches avaliable on request
Non handed Lock will fit doors hung on the left or right
