Borg BL2202 ECP Mechanical Push Button Mechanical Lock Satin chrome

Brand: Borg

All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

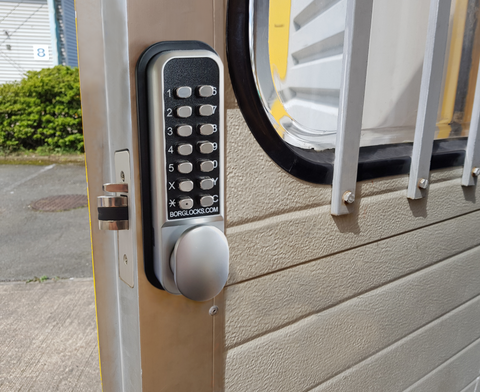

Borg Mechanical Push Button Mechanical Lock Satin chrome

BL2202 ECP

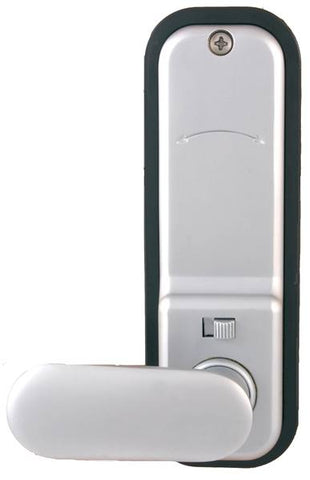

Keypad, Inside handle (Holdback), 28mm Backset Aluminium Latch

 Easicode Pro: On Door Code Change


  • Cast Housing & Knob with Stainless Steel Buttons
  • 50,000 cycle test
  • 14 Buttons, 12 Coded, 1 Clear & 1 Code Change
  • Non-handed (Reversible)
  • 1 year guarantee from date of purchase
  • Over 4000+ combinations
  • 2 Flat Bladed Spindles (80 & 100mm) and Fixings to suit Door Thickness up to 54mm
  • Suitable for internal light duty doors
  • On Door Code Change
  • Optional Holdback.


Borg Product Leaflet

Dimension Drawing

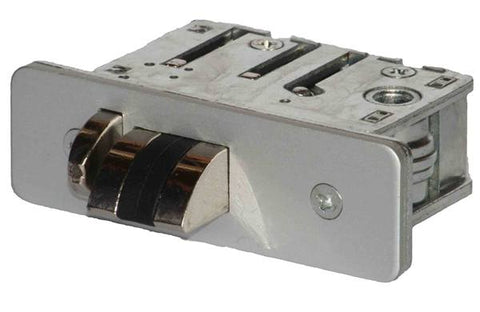

28mm Backset Aluminium Latch Features

  • Compact design
  • Suitable for narrow stile doors
  • Separate anti-thrust bolt
  • Compatible with electric strikes
  • Reinforced latch & thrust bolt
  • Backset of 28mm
  • Nylon bolt insert
  • 15.5mm bolt projection
  • 1 year guarantee from date of purchase
  • Tested to 100,000 cycles
  • Suitable for internal and sheltered external applications


Borg Product Leaflet for aluminium latch

Dimension drawing for aluminium latch
