Axim LK-1800 Series Hooklock

Europrofile hooklocks provide security deadlocking for a variety of aluminium doors including swinging and sliding applications.

Technical information:

  • Europrofile Hook Lock Designed for narrow stile hollow metal doors
  • Double or single action, centre hung or offset pivot, suitable for aluminium or steel doors.
  • Natural satin silver anodised. Manufactured from zinc plated steel.

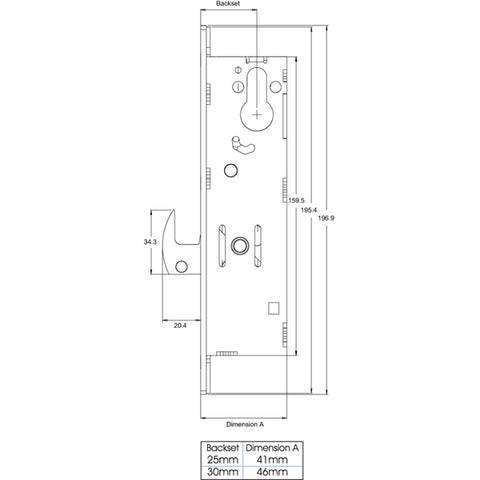

  • 25mm backset model: 195mm x 25mm x 41mm
  • 30mm backset model: 195mm x 25mm x 46mm
  • 40mm backset model: 195mm x 25mm x 51mm
  • Steel case and mechanism, zinc plated for resistance to corrosion.
  • 5 ply laminated steel bolt with concealead hardened steel roller pin, resists hacksaw attacks.
  • 13mm x 20mm bolt throw.
  • Available in flat or radius profile also radius face with woolpile.
  • Locks can be secured in place using Axim 33mm mounting bridges.
  • Accepts standard 17mm europrofile cylinders

Axim LK-1800 Series Hooklock Spec Sheet
