Dorma 9800 Series Panic Bolt Touch Bar

Brand: Dorma


All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

Dorma 9800 Series Panic Bolt Touch Bar

The 9000 Series heavy-duty exit device provides superior durability while the smooth reduced projection touchbar assembly minimizes catch hazards.

 CERTFIRE Approved CF875.

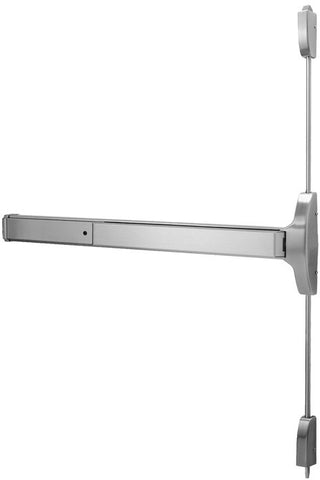

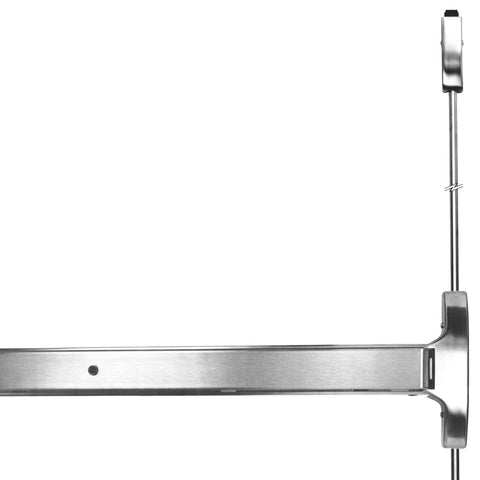

The 9800 Series is a panic bolt fitted completely to the face of the door. The 19mm deadlocking, Pullman type latchbolt engages surface or recessed keepers in the frame head and a 12mm slide bolt engages in the floor, providing secure dual-point locking of the door.

Applications

This premium exit device is built for high impact applications such as schools, universities and other institutional or commercial buildings.

DORMA solutions

All devices and trim are designed for 48mm - 101mm thick doors.  For door thickness greater than 101mm, consult DORMA.

SPECIFICATIONS

  • Size “AA” device fits 1220mm wide door, can be cut to door 838mm wide on site.
  • Size “CC” device fits 915mm wide door, can be cut to door 610mm wide on site.
  • Size “DD” device fits 610mm wide door, can be cut to door 410mm wide on site.
  • Standard device fits doors up to 2430mm high, specify extended rods “ETR” for doors 2430mm to 3050mm high
  • Devices are handed but easily field-reversible.

Click here for Dorma 9800 Series Panic Bolt Touch Bar Spec Sheet
