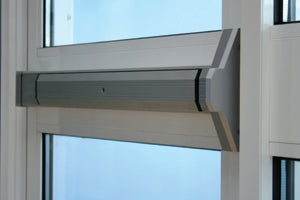

Axim PR-7100 Concealed Vertical Rod Flat Touch Bar

Brand: Axim


All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

Axim PR-7100 Concealed Vertical Rod Flat Touch Bar

Tested to EN 1125

Technical Information:

  • Heavy duty lever springs and internal mechanism for durable, smooth operation.
  • Plated steel and stainless steel internal components.
  • 8.5mm diameter, steel locking rods.
  • 16mm bolt throw. Bolt length adjustable ensuring correct alignment.
  • Standard model suitable for door widths as narrow as 700mm and 2135mm high.
  • 300mm & 600mm coupling rods are available for taller doors.
  • Available with standard mortice rim cylinder and mounting pad allowing external access.
  • Permanent bolt retention for easy access can be achieved with cylinder key from outside, or hexagon key in the touch bar.
  • Extruded aluminium touch bar, anodized finish with coloured alloy end caps to match.

Axim PR-7100 Concealed Vertical Touch Bar Spec Sheet
