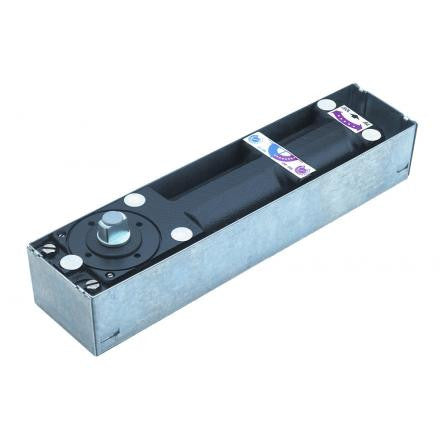

Dormakaba BTS 80 Floorspring EN 4
Dormakaba BTS 80 Floorspring EN 4
| Part Number | 80110000 |
| Spring Strength | EN 4 (29 NM) |
| Max. Door Width | 1100 mm |
| Max. Door Weight | 300 Kg |
| Features� | Adjustable sweep speed 175 - 0 degrees |
| Adjustable Hold-open from 75 - 175 degrees | |
| Adjustable Delayed action from 75 - 175 degrees | |
| Mechanical Backcheck from approx 80 degrees | |
| Certification | CE marked |
| Successful independently tested to BS EN 1154 | |
| Note | NOT suitable for fire doors due to hold open option (See BTS80F & BTS80 EMB for Fire doors). |
Click here for the Dormakaba technical leaflet
