Adams Rite ARC-51N Concealed Transom Door Closer Kit

Brand: Adams Rite


All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

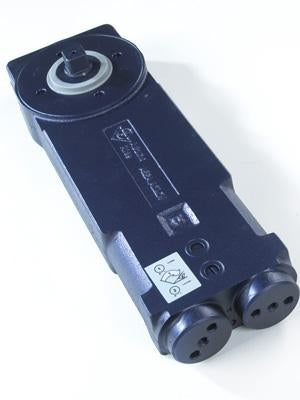

Adams Rite ARC-51N Concealed Transom Door Closer Kit

The Adams Rite ARC-51N is designed to provide a controlled closing of a single or double action aluminium doors.

Specification

  • Suitable for use on aluminium doors
  • Dual closing speeds to allow flexibility in its closing action, three levels of spring tension
  • 90 degrees hold-open and Non-Hold Open facility available
  • Comprehensive fixing pack including a fixing channel
  • Heavy duty pivot supplied as standard
  • Guarantee 3 years
  • A variety of arms and brackets to suit most applications.

The Disability Discrimination Act (DDA)

The Overhead Concealed ARC-51N Springless version uses a standard section preparation allowing installation of a surface mounted power assisted closer to aid compliance with the requirements of the DDA.

ARC-51N Concealed Transom Door Closer Kit Technical Sheet

Ordering Codes.

  • 5112-1992N : Light Spring Closer Non-Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot
  • 5112-2992N : Light Spring Closer 90 degrees Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot
  • 5113-1992N : Medium Spring Closer Non-Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot
  • 5113-2992N : Medium Spring Closer 90 degrees Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot
  • 5114-1992N : Heavy Spring Closer Non-Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot
  • 5114-2992N : Heavy Spring Closer 90 degrees Hold Open Side Load Anti-Finger Trap Arm 65mm Pivot.

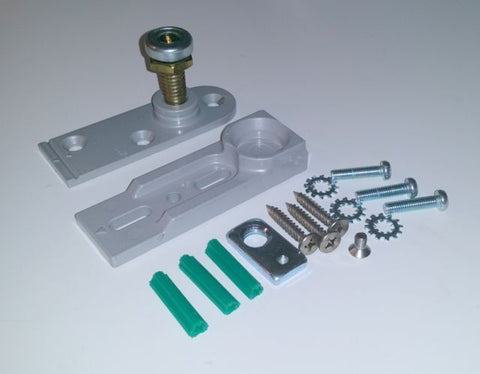

Please Note: The Concealed Transom Closer, Side Load AFT Arm, Heavy Duty Bottom Pivot, 65mm Bracket Kit and Adams Rite Branded Tag Plate is supplied as standard in kit form as shown in the images above.
