Adams Rite ARC-51N Concealed Transom Door Closer Kit

Brand: Adams Rite


All prices are inclusive of VAT.

Contact us if you have any questions about our products or availability.

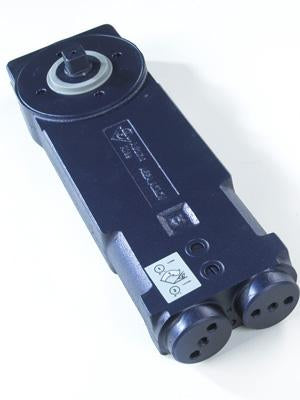

Adams Rite ARC-51N Concealed Transom Door Closer Kit

The Adams Rite ARC-51N is designed to provide a controlled closing of a single or double action aluminium doors.

Specification

  • Suitable for use on aluminium doors
  • Dual closing speeds to allow flexibility in its closing action, three levels of spring tension
  • 90 degrees hold-open and Non-Hold Open facility available
  • Comprehensive fixing pack including a fixing channel
  • Heavy duty pivot supplied as standard
  • Guarantee 3 years
  • A variety of arms and brackets to suit most applications.

The Disability Discrimination Act (DDA)

The Overhead Concealed ARC-51N Springless version uses a standard section preparation allowing installation of a surface mounted power assisted closer to aid compliance with the requirements of the DDA.

ARC-51N Concealed Transom Door Closer Kit Technical Sheet

Ordering Codes.

  • 5112-1997N : Light Spring Closer Non-Hold Open End Load Arm Anti-Finger Trap 70mm Pivot
  • 5112-2997NLight Spring Closer 90 degrees Hold Open End Load Arm Anti-Finger Trap 70mm Pivot
  • 5113-1997N : Medium Spring Closer Non-Hold Open End Load Arm Anti-Finger Trap 70mm Pivot
  • 5113-2997N : Medium Spring Closer 90 degrees Hold Open End Load Arm Anti-Finger Trap 70mm Pivot
  • 5114-1997N : Heavy Spring Closer Non-Hold Open End Load Arm Anti-Finger Trap 70mm Pivot
  • 5114-2997N Heavy Spring Closer 90 degrees Hold Open End Load Arm Anti-Finger Trap 70mm Pivot

Please Note: The Concealed Transom Closer, End Load AFT Arm, Heavy Duty Bottom Pivot, 70mm Bracket Kit and Adams Rite Branded Tag Plate is supplied as standard in kit form as shown in the images above.
